Data Quality Checks

How Pipeline DQA Works

Form: NG-HTS 001 Client Intake | Version: v1.6 | Country: Nigeria

This page documents the server-side data quality checks applied after OCR data has been submitted and processed through the dbt pipeline. These checks are complementary to in-phone validation: they operate on the full processed dataset, apply more sophisticated cross-field logic, and produce a structured audit trail used for data quality reporting and review.

No dbt SQL check models were provided for this form. The content below describes the standard check architecture and the checks that would be expected for this form based on its field definitions, OCR models, and clinical logic. This page will be updated automatically when SQL model files are added to the repository.

flowchart LR
  A["📷 Scanned &amp;\nsubmitted data"]
  B["📥 Base layer\n(raw text)"]
  C["🔧 Pre-clean\n(filter, deduplicate)"]
  D["✅ Clean layer\n(cast, derive)"]
  E["🔍 Checks layer\n(one row per failure)"]
  F["💎 Refinery checks\n(mart-ready DQA)"]
  G["📊 Metabase\nDQA dashboard"]
  H["📋 Data manager\nreview"]

  A --> B --> C
  C --> D
  C --> E
  E --> F --> G --> H

In-phone vs pipeline checks — what is the difference?

Dimension	📱 In-phone validation	🔍 Pipeline DQA checks
When	At moment of photo capture	After server-side OCR processing
What OCR sees	Mark / no mark only (lightweight)	Full character-level OCR values
Scope	Single record, single photo	Entire dataset, all submissions
Effect on worker	Immediate alert; must correct before submitting	No immediate effect; flagged for data manager review
Effect on data	Prevents bad data entering the system	Flags or excludes records from clean dataset
Logic available	Field presence only	Value ranges, cross-field rules, date validity, score consistency

Check Severity Levels

Table 1

Severity	Meaning	Typical use cases
Check Severity Levels
⚠️ Warning	Record is flagged and appears in the DQA report, but is retained in the clean analytical dataset. The value is preserved as-is. A data manager may choose to investigate or correct it.	OCR uncertainty on non-critical fields; scores that are plausible but inconsistent with individual items; optional fields with unexpected values.
🔴 Error	Record is flagged AND excluded from the clean analytical dataset. It will not appear in counts, indicators, or dashboard aggregations until the issue is resolved.	Unparseable dates on mandatory date fields; critical identifiers that cannot be decoded; records where core mandatory fields are entirely missing.

Check Catalogue

The checks below are organised by check macro type. Each section explains what the check does, which fields it applies to, what failure looks like, and what the recommended action is.

🔢 Integer Conversion Checks (`batch_check_convert_to_int`)

These checks verify that OCR text values in digit-box fields can be parsed as integers. A failure means the OCR returned a value containing non-digit characters — typically an underscore (uncertain OCR), a letter misread as a digit, or a blank — that cannot be converted to a number for analysis.

Severity: ⚠️ Warning — record retained in clean dataset; field value stored as NULL.

Table 2

Variable	Field Label	Boxes	Expected range	Failure example
Integer Conversion Check Fields
age	Age (years)	3	1–120	"_2_" (OCR uncertain)
numWives	No. of Wives/Co-wives	2	0–99	"O2" (letter O misread)
numChildren	No. of own children <5 years	2	0–99	"-1" (negative value)
recency	Recency Number	4	Any 4-digit integer	"123_" (partial read)
phoneNumber	Client Telephone Number	11	11-digit Nigerian number	"0801234567_" (11th digit uncertain)
postalCode	Postal Code	7	Any integer	"AB123" (letters present)
knowledgeAssessment	Knowledge Assessment Score	1	0–6	"_" (entirely blank)
riskAssessment	Personal HIV Risk Assessment Score	1	0–9	"_" (entirely blank)
tbScreening	TB Screening Score	1	0–5	"6" (exceeds max of 5)
stiScreening	STI Screening Score	1	0–5	"6" (exceeds max of 5)
sexPartnerRiskAssessment	Sex Partner Risk Assessment Score	1	0–7	"8" (exceeds max of 7)
condomProvidedToClientCount	How many condoms provided	2	0–99	"__" (both boxes uncertain)
lubricantProvidedToClientCount	How many lubricants provided	2	0–99	"__" (both boxes uncertain)
cd4FlowCytometry	CD4 Flow Cytometry (cells/m3)	4	0–9999	"____" (all boxes uncertain)

📅 Date Conversion Checks (`batch_check_convert_to_date`)

These checks verify that date fields can be parsed into valid calendar dates in dd/mm/yyyy format. Failures include OCR uncertainty in any part of the date, invalid day/month combinations (e.g. 31 February), and dates outside a plausible range for this programme.

Severity: ⚠️ Warning for partial reads; 🔴 Error for dateVisit when the date is entirely unreadable.

Table 3

Variable	Field Label	Format	OCR models	Pre-printed	Check severity	Failure examples
Date Conversion Check Fields
dateVisit	Date of Visit	dd/mm/yyyy	date_dd, date_mm, two_digits_20, date_nearby_yy	Year century '20'	🔴 Error if fully blank; ⚠️ Warning if partial	"__/05/2024" (day uncertain); "31/02/2024" (invalid date); date in the future
endDate	Date (completion)	dd/mm/yyyy	date_dd, date_mm, two_digits_20, date_nearby_yy	Year century '20'	⚠️ Warning	"21/__/2024" (month uncertain); date before 2015

How the two_digits_20 model interacts with date checks

Both date fields have the year century pre-printed as 20 on the physical form. The two_digits_20 OCR model always returns 20 for those two boxes regardless of what is written, so the century component is never uncertain. Only the decade and unit digits of the year (date_nearby_yy boxes) can produce uncertainty.

☑️ Multiple-Selection Checks (`batch_check_melt_columns`)

For select-one questions, ScanForm exports each answer option as a separate boolean column. The melt check detects records where more than one option column is set to 1 for the same question — meaning the clinician accidentally marked multiple bubbles, or OCR misread shading as a filled bubble.

Severity: ⚠️ Warning — the record is retained but the field value is set to NULL in the clean dataset, since the intended answer is ambiguous.

Note that select_one_or_zero OCR model already enforces a maximum of one filled bubble during the OCR recognition phase. The melt check provides a second layer of defence at the pipeline level, catching any cases that passed through OCR recognition.

Table 4

Page 1 fields
Multiple-Selection Check Fields
Variable	Field Label	Options (exported columns)	Page¹
referredFrom	Referred From	self, tb, sti, fp, opd, ward, blood_bank, other	P1
testingSetting	Setting	ct, tb, sti, fp, opd, ward, outreach, standalone_hts, other	P1
modality	Modality	1–14 (numeric code)	P1
sex	Sex	male, female	P1
firstTimeVisit	First Time Visit	yes, no	P1
maritalStatus	Marital Status	married, divorced, widowed, separated, single	P1
educationId	Education Level	none, primary_school, junior_secondary, higher_secondary, post_secondary, quranic	P1
employmentStatusId	Employment Status	employed, unemployed, retired, freelance, student	P1
typeConsueling	Type of Session	individual, couple, group, previously_self_tested	P1
previouslyTested	Previously tested within last 3 months	yes, no	P1
indexClient	Index Testing: Is client from an index client?	yes, no	P1
relationWithIndexClient	Relation with index client	biological, sexual, social	P1
pregnant	Client is Pregnant	yes, no	P1
breastFeedingUnder6	Client breastfeeding < 6 months	yes, no	P1
breastFeedingOver6	Client breastfeeding > 6 months	yes, no	P1
previousTestedHIVNegative	Previously tested HIV negative	0, 1	P1
timeLastHIVNegativeTestResult	Time of last HIV Negative test Results	1mth, 13mth, 46mths, 6mths	P1
everHadSexualIntercourse	Ever had sexual intercourse	0, 1	P1
hivTestResult	HIV Test Result	negative, positive	P2
hivTestBefore	Have you been tested for HIV before this year?	not_previously_tested, previously_negative, previously_positive_hiv_care, previously_positive_not_hiv_care	P2
recencyTest	Recency test with RTRI	recent, long_term, negative, invalid	P2
cd4SemiQuantitative	CD4 Test Result — Semi-Quantitative	lessThan200, over200	P2
syphilisTestResult	Syphilis Test Result	non_reactive, reactive	P2
hepatitisBTest	Hepatitis B Virus Test Result	negative, positive	P2
hepatitisCTest	Hepatitis C Virus Test Result	negative, positive	P2
¹ P1 = Page 1 (left page); P2 = Page 2 (right page) of the two-page photopack.

Expected Additional Checks

Beyond the three standard macro-based check types above, the following custom cross-field and range checks are expected for this form based on its clinical logic. These would be implemented as individual CTEs in the checks SQL model.

Table 5

Check name	Fields involved	Rule	Severity
Expected Custom Cross-Field and Range Checks
knowledge_score_range	knowledgeAssessment	Score must be between 0 and 6	⚠️ Warning
risk_score_range	riskAssessment	Score must be between 0 and 9	⚠️ Warning
tb_score_range	tbScreening	Score must be between 0 and 5	⚠️ Warning
sti_score_range	stiScreening	Score must be between 0 and 5	⚠️ Warning
sex_partner_score_range	sexPartnerRiskAssessment	Score must be between 0 and 7	⚠️ Warning
knowledge_score_consistency	knowledgeAssessment + 6 item fields	Recorded score must equal the count of Yes (1) responses across the 6 knowledge items	⚠️ Warning
risk_score_consistency	riskAssessment + 9 item fields	Recorded score must equal the count of Yes (1) responses across the 9 risk items	⚠️ Warning
tb_score_consistency	tbScreening + 5 item fields	Recorded score must equal the count of Yes (1) responses across the 5 TB items	⚠️ Warning
sti_score_consistency	stiScreening + 5 item fields	Recorded score must equal the count of Yes (1) responses across the 5 STI items	⚠️ Warning
sex_partner_score_consistency	sexPartnerRiskAssessment + 7 item fields	Recorded score must equal the count of Yes (1) responses across the 7 sex partner risk items	⚠️ Warning
recency_without_positive_hiv	recencyTest + hivTestResult	recencyTest must be blank if hivTestResult = Negative	⚠️ Warning
cd4_without_positive_hiv	cd4SemiQuantitative / cd4FlowCytometry + hivTestResult	CD4 fields must be blank if hivTestResult = Negative	⚠️ Warning
breastfeeding_contradiction	breastFeedingUnder6 + breastFeedingOver6	Both breastfeeding fields cannot simultaneously be Yes	⚠️ Warning
index_code_both_filled	indexClientCodeNew + indexClientCodeOld	indexClientCodeNew and indexClientCodeOld cannot both be filled — only one should be used	⚠️ Warning
date_visit_in_future	dateVisit	Parsed date of visit must not be after today's date	🔴 Error
date_visit_before_programme	dateVisit	Parsed date of visit must not be before 2015-01-01	⚠️ Warning
phone_number_length	phoneNumber	Phone number must be exactly 11 digits when all boxes are filled	⚠️ Warning
age_range	age	Age must be between 1 and 120 when parseable	⚠️ Warning

Check Output Structure

Every failing check produces one row in the checks table. Passing records produce no rows. The checks table is a union of all individual CTE results.

Table 6

Column	Type	Description
Checks Table — Output Column Structure
page_id	text	Unique page identifier from the ScanForm Data Matrix — used to locate the physical form
entry_url	text	Direct link to the ScanForm verification interface entry for this record
entry_submission_date	timestamp	Timestamp when the photo was submitted to the server
row_id	text	Row identifier within the export (for line-listing forms with multiple records per page)
check_name	text	Machine-readable check identifier (e.g. tb_score_range)
check_description	text	Plain-language description of the issue, suitable for display to a data manager
severity	text	Warning or Error — determines whether the record is excluded from the clean dataset
field_name	text	The specific variable that triggered this check
field_value	text	The raw OCR value (before casting) that failed the check
check_tags	text[]	Array of tags for filtering in the DQA dashboard (e.g. ['date', 'page1'], ['score', 'tb'])

Summary

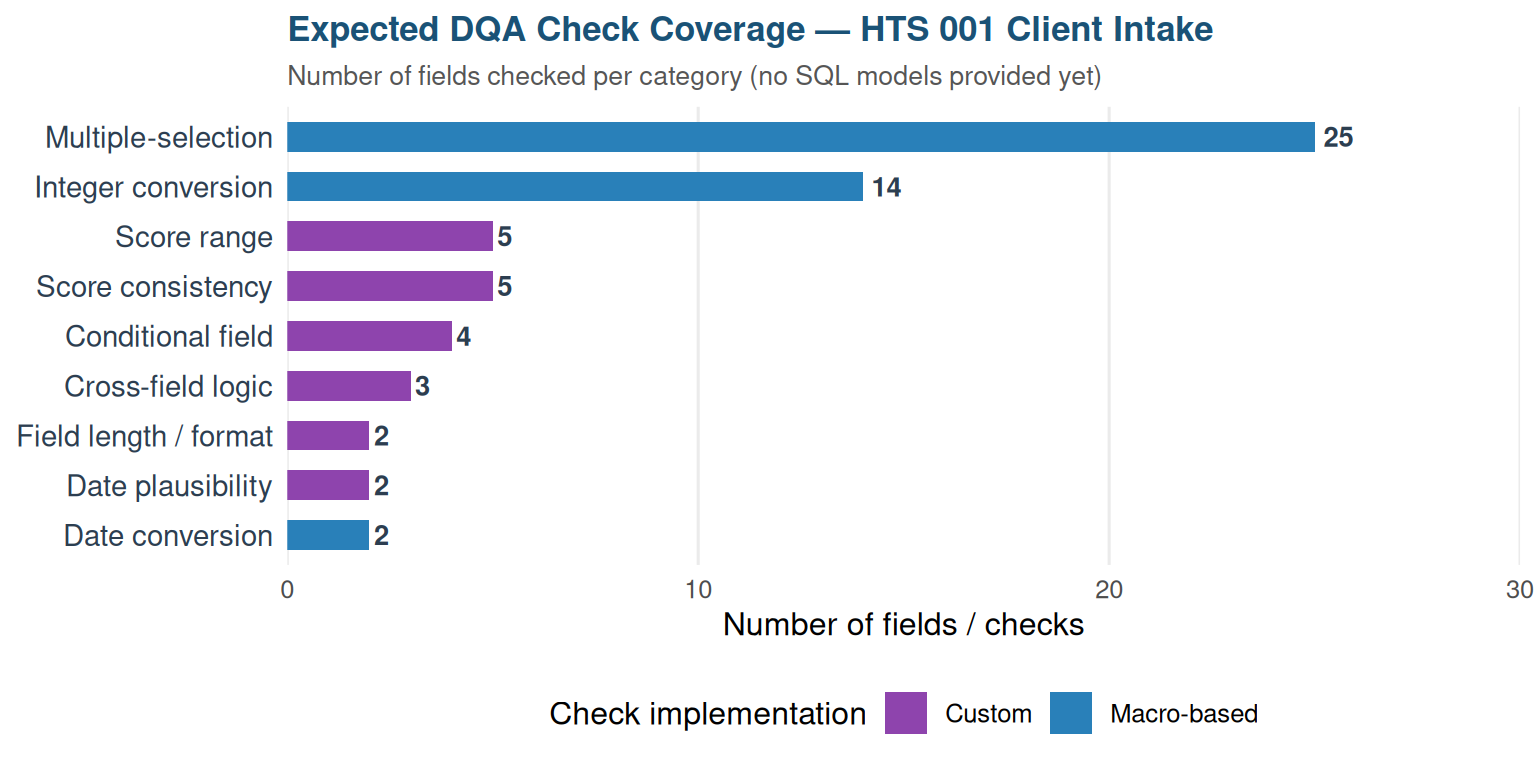

Figure 1: Expected pipeline check coverage by category

Table 7

Metric	Value
Pipeline DQA Check Summary — HTS 001 Client Intake
Macro-based integer conversion checks (fields)	14
Macro-based date conversion checks (fields)	2
Macro-based multiple-selection checks (questions)	25
Expected custom range checks	5
Expected custom score consistency checks	5
Expected custom cross-field / conditional checks	8
Total expected checks	59
Fields with Error-level severity	1 (dateVisit — fully unreadable)
Fields with Warning-level severity	58
SQL models provided	0 — not yet implemented

Score consistency checks require caution

The five assessment scores (knowledgeAssessment, riskAssessment, tbScreening, stiScreening, sexPartnerRiskAssessment) are handwritten sums entered by the clinician at the time of the consultation. It is common for these to differ from the automated sum of individual item responses, either due to arithmetic errors or because the clinician counted items differently. The pipeline retains the clinician-recorded score as the primary value and raises a Warning — it does not overwrite the recorded score with the computed sum.

How to act on DQA flags

🔴 Error records are excluded from indicator calculations automatically. A data manager should review the physical form (use the entry_url link to open the scan in ScanForm) and either correct the OCR value through manual verification or mark the record as permanently invalid.
⚠️ Warning records remain in the clean dataset. Review is recommended for high-volume Warning categories (e.g. score inconsistencies) to assess whether a systematic training issue exists at a facility.
